PandoraFMS: Build and Installation Guide
Index7 sections

As I conclude my senior year in college, one of the final cyber courses I’m taking began to tough upon the importance of Network Management Systems. These systems can be of importance for both Cybersecurity and Digital Forensic professionals; allowing the user to monitor a network with logs/alerts previously configured by an organization’s IT department utilizing SNMP (Simple Network Management Protocol). I was required to learn how to configure and install one of these systems within a domain environment. Below is a guide of how to do just that with the opensource monitoring software, PandoraFMS.

Overview

  1. Install PandoraFMS Console/Server on a CentOS system (nmon01)
  2. Monitor CentOS (web01), Windows Server (mgmt01), and Windows Server Core (ad01) systems utilizing PandoraFMS Client

System Networking:

Below is the networking for the systems in this guide:

  • nmon01 (CentOS) – 10.0.5.11
  • ad01 (Windows Server Core) – 10.0.5.5
  • mgmt01 (Windows Server) – 10.0.5.10
  • web01 (CentOS) – 10.0.5.200

NOTE: You will need to allow SNMP through your network firewall and configure your endpoints with an SNMP client and server. To do this, I recommend the following guides for the firewall I used, pfSense, and a CentOS based SNMP Client/Server.

Install Pandora Console

On nmon01:

yum -y install mariadb-server

systemctl start mariadb

systemctl enable mariadb

mysql_secure_installation

NOTE: SAVE THIS PASSWORD for later use

nano /etc/yum.repos.d/pandorafms.repo

Editing the pandorafms.repo file

yum -y install pandorafms_console

systemctl start httpd
systemctl enable httpd

firewall-cmd --zone=public --add-port=80/tcp --permanent
firewall-cmd --reload

yum install -y policycoreutils-python

semanage fcontext -a -t httpd_sys_rw_content_t '/var/www/html/pandora_console/include'

semanage fcontext -a -t httpd_sys_rw_content_t '/var/www/html/pandora_console/attachment'

restorecon '/var/www/html/pandora_console/include'
restorecon '/var/www/html/pandora_console/attachment'

Go to http://<serverIP>/pandora_console on your web browser

Click “Next” & “Accept Agreement”

Enter the root password of MySQL (mariadb) that you set earlier

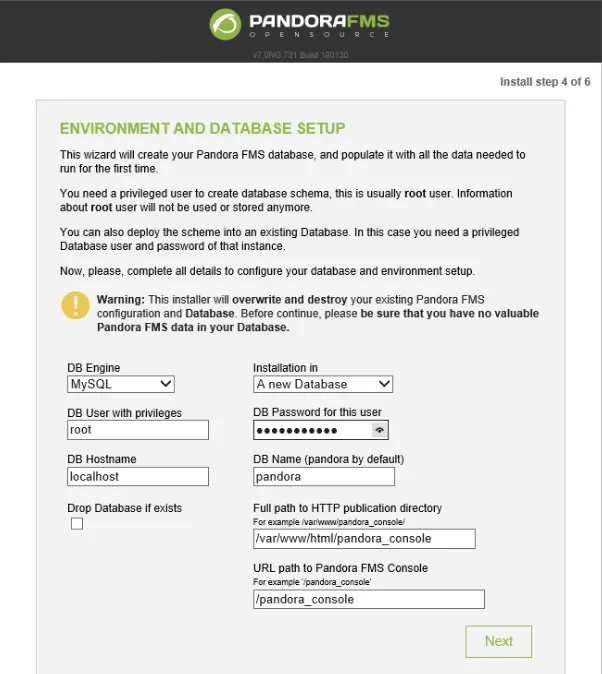

Entering the MariaDB root password in the Pandora Console web installer

Click Next.

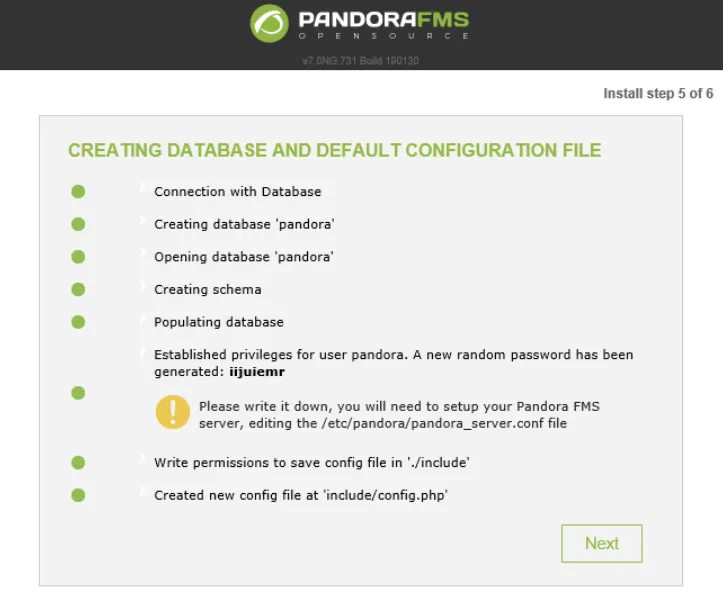

Pandora Console install showing the randomly generated password

NOTE: SAVE THIS RANDOMLY GENERATED PASSWORD

rm -rf /var/www/html/pandora_console/install.php

LOGIN to Pandora Console at http://<serverIP>/pandora_console

Default User = “admin” — Password = “pandora”

Finish configuring settings in the resulting pop-up wizard.

Install Pandora Server

On nmon1:

rpm -ivh https://sourceforge.net/projects/pandora/files/Tools%20and%20dependencies%20%28All%20versions%29/RPM%20CentOS%2C%20RHEL/wmic-4.0.0tp4-0.x86_64.rpm/download
rpm -ivh https://sourceforge.net/projects/pandora/files/Tools%20and%20dependencies%20%28All%20versions%29/RPM%20CentOS%2C%20RHEL/xprobe2-0.3-12.2.x86_64.rpm/download
wget http://dl.fedoraproject.org/pub/epel/7/x86_64/Packages/p/perl-Geo-IP-1.43-3.el7.x86_64.rpm
rpm -Uvh perl*
yum -y install pandorafms_server
nano /etc/pandora/pandora_server.conf

Change “dbpass pandora” to “dbpass <pandoraRandomGenPassword>”

Editing the dbpass value in pandora_server.conf

NOTE: Make sure this field above is correct and matches the randomly generated password Pandora assigned your instance.

systemctl start pandora_server
systemctl enable pandora_server

systemctl start tentacle_serverd
systemctl enable tentacle_serverd

firewall-cmd --zone=public --add-port=41121/tcp --permanent
firewall-cmd --reload

Go to Server → Manage Servers on Pandora Console Web GUI

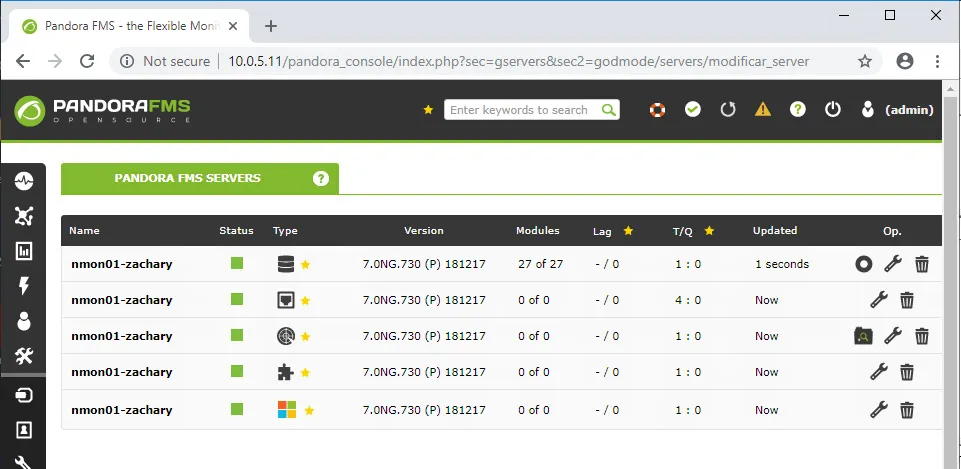

Pandora Console Manage Servers view

Install Pandora Agent (CentOS)

On web01:

wget https://sourceforge.net/projects/pandora/files/Pandora%20FMS%207.0NG/730/RHEL_CentOS/pandorafms_agent_unix-7.0NG.730-1.noarch.rpm
yum localinstall pandorafms_agent_unix-7.0NG.730-1.noarch.rpm
nano /etc/pandora/pandora_agent.conf

Change “server_ip” to the IP Address of your Pandora Server

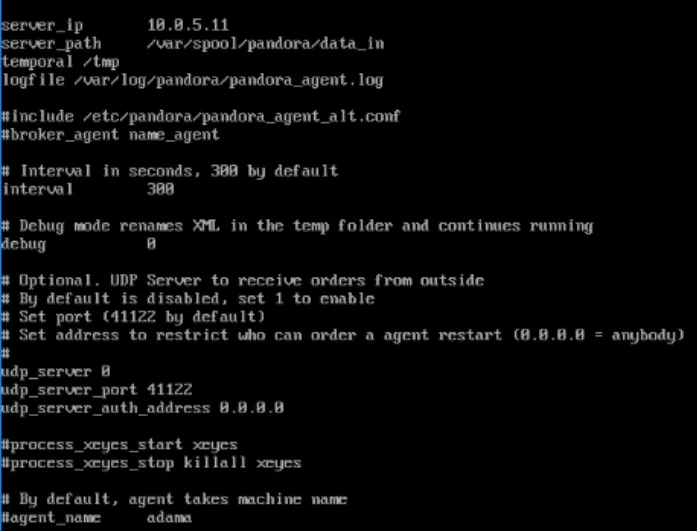

Editing server_ip in pandora_agent.conf

service pandora_agent_daemon start

Go to Views → Agent Detail in Pandora Console to verify successful Install.

Install Pandora Agent (Windows Server)

On mgmt01:

GO TO Windows Server Web Browser and download Pandora Agent, not Server

Follow the on-screen prompts to install PandoraFMS Agent

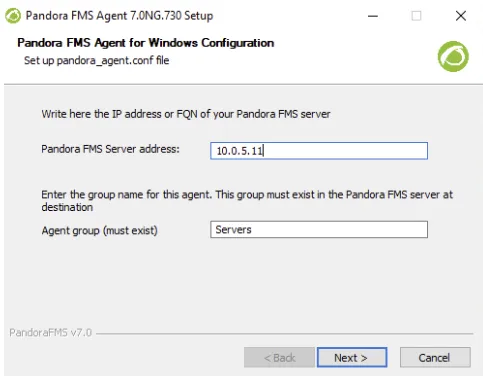

PandoraFMS Agent installer running on Windows Server

Verify successful install on Pandora Console.

Install Pandora Agent (Windows Server Core)

On ad01:

Navigate to Command Line (Option 15)

Enter Powershell (“powershell” + ENTER)

NOTE: There are other ways to do the following, however I decided to install Google Chrome (yes) to Windows Server Core to utilize Chrome’s Downloads section to install this agent. You can utilize Powershell’s Invoke-WebRequest option as well, but where is the fun in that? 🙂

cd /
mkdir Chrome

Invoke-WebRequest "http://dl.google.com/chrome/install/375.126/chrome_installer.exe" -UseBasicParsing -OutFile C:\Chrome\Chromesetup.exe

Invoke-WebRequest downloading the Chrome installer in PowerShell on Server Core

cd <installDir>
Start-Process .\chrome.exe

Download Pandora Agent, not Server

Install Agent and verify Install on Pandora Console.

Verify Agent to Server Connections

Open PandoraFMS Console on your web browser and look under Agent Detail. If you see all of your servers, then all Agent installations were successful:

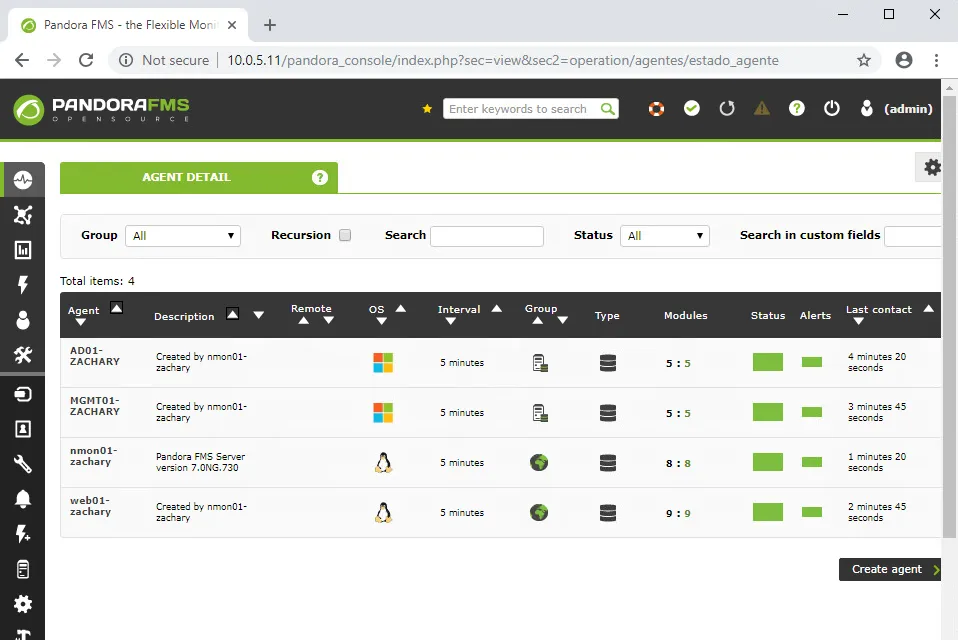

Pandora Console Agent Detail view listing all monitored endpoints

You should see an entry for every endpoint with an Agent

Congrats! PandoraFMS is successfully implemented on your network. Enjoy the world of SNMP.
